8

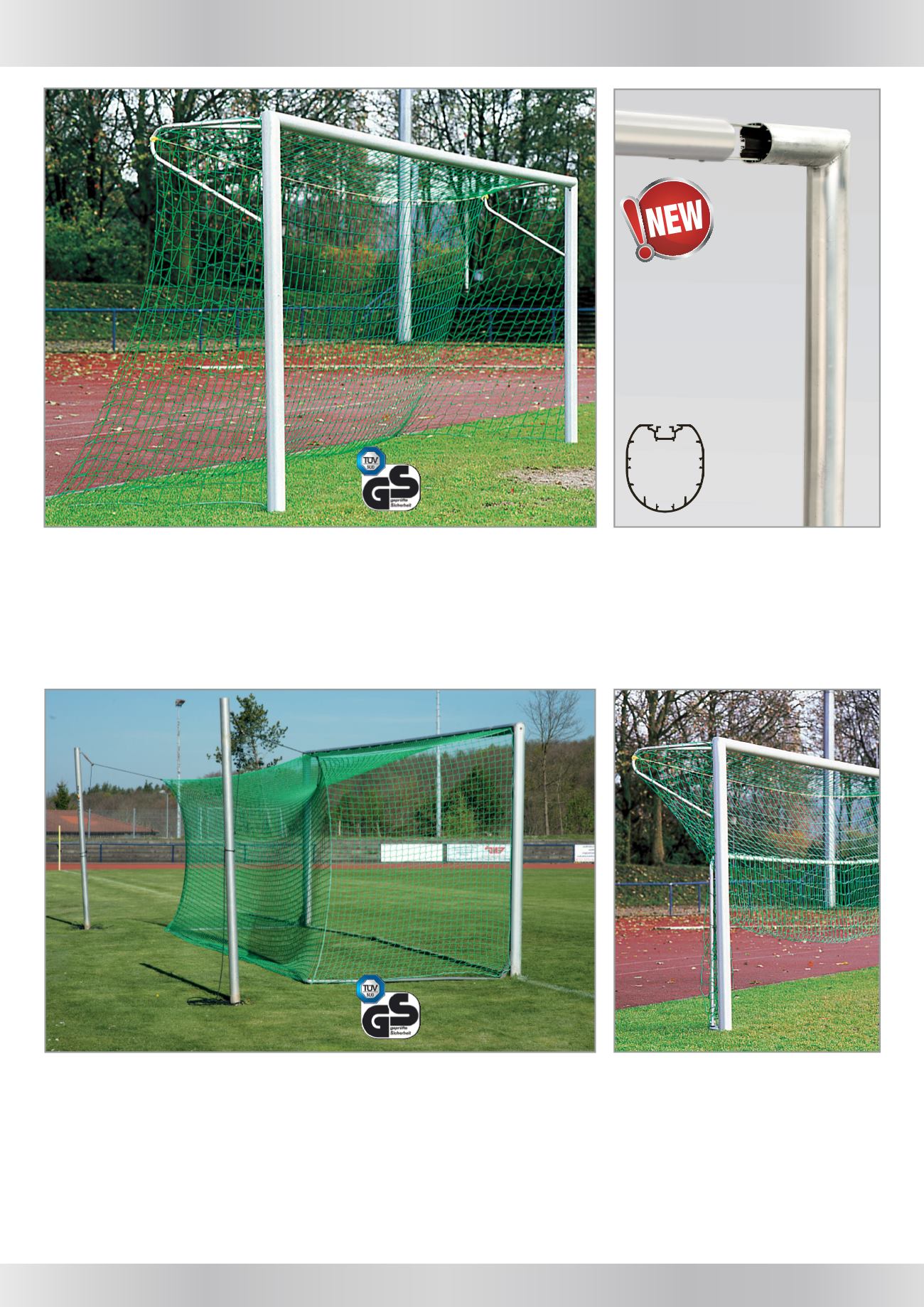

Soccer Goal Court Royal Aluminium with net hoops

The newly developed Soccer Goals Court Royal, made from plain aluminium, oval profile 120 x 100 mm, are delivered in four parts and comply with its stability with the

fully-welded aluminium goals. The two goalposts are fully-welded across the corner and are connected by a 6 m long bar with super stable interior profiles. The stable net

retaining brackets are screwed to the goalposts as well as to the groove in the bar. The torsion-free special profile is fitted with a groove in which the provided net holders

can be inserted. For additional charge of 7 % the goals can be delivered with an integrated net holder. The goals comply with the FIFA and DFB standards, are produced

accordiing to DIN EN 748 and are safety tested ( GS-tested ). Complete with ground sleeves, insert depth 400 mm.

The Court Royal Goals don’t override the delivery dimension of 6 m. Dimensions: 7,32 x 2,44 m

No. 200103

aluminium plain

No. 200104

aluminium white

Soccer Goal Court Royal with free hanging net

The newly developed Soccer Goals Court Royal, made from plain aluminium, oval profile 120 x 100 mm, are de-

livered in four parts and comply with its stability with the fully-welded aluminium goals. The two goalposts are

fully-welded across the corner and are connected by a 6 m long bar with super stable interior profiles. The stable

tension posts, made of 30 mm aluminium tube include ground sleeves and tensioning ropes.

The torsion-free special profile is fitted with a groove in which the provided net holders can be inserted. For addi-

tional charge of 7 % the goals can be delivered with an integrated net holder. The goals comply with the FIFA and

DFB standards, are produced accordiing to DIN EN 748 and are safety tested (GS-tested). Complete with ground

sleeves, insert depth 400 mm. The Court Royal Goals don’t override the delivery dimension of 6 m.

Dimensions: 7,32 x 2,44 m

No. 200203

aluminium plain

No. 200204

aluminium white

Soccer Goal Base Frame,

Aluminium, Tiltable

Additional device for No. 200103-4 and 200203-4. The

tiltable base frame can be used, where lawn care

should be made easier. Special protection of the nets.

In general it should be used for natural grass courts.

No. 200701

net depth 1.50 m

No. 200702

net depth 2.00 m

Goals - Nets
